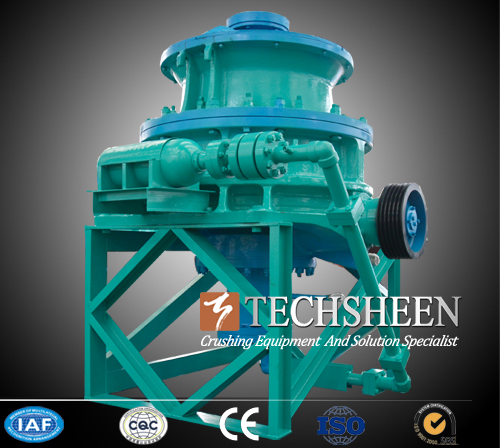

CPYQ single-cylinder hydraulic cone crusher is widely used in secondary, tertiary and forth crushing of various stones and rocks with medium and high hardness. It is featured by advanced design, simple structure, compact appearance, high crushing capability, easy operation and maintenance. The craft process can be automatically controlled by adjusting discharge opening through hydraulic device, and carrying out overload protection. Main shaft is supported both from the top and bottom, among which, the top adopts spherical support, which can endure bigger crushing force and stroke. Special crushing chamber that is designed according to the principle of lamination reduces direct abrasion to liners, and thus lengthens the service life of liners. The product size fraction comes to more even and cubic shape proportion increases apparently. Different crushing chambers are optional to meet different requirements. By controlling feeding equipment and giving full feed to crusher, lamination crushing can be realized to the furthest. Automatic control system can test and make up worn-out liners, adjust discharge opening automatically, ensure even product granularity and enhance the liner utilization ratio.
Product features:
1.Diverse crushing cavities，easy replacement. Extra-coarse type, coarse type and medium type are equipped with feed hopper having material level detection function; while fine type is equipped with the average feeding material device.
2.Displacement sensor can quickly, accurately detect and set the size of the discharge opening.
3.Accumulator and throttle valve can cooperate with hydraulic cylinder, automatically discharge iron to protect the main engine when iron and other can’t be crushed materials enter into the crushing chamber.
4.Concave and mantle of cone crusher adopt none filler materials method, Simple fastening way and quick replace speed are greatly reducing the downtime.
5.Spiral bevel gear has a bigger transmission torque. Operate smoothly and with low noise.
6.The dust-seal air lines ensure the internal clean and make all pieces of copper friction pair has a longer life.
7.The upper main shaft joints with upper frame by oscillating bearing. Spindle moves more flexible and has longer service life.
8.The lubrication device has a variety of flexible cooling ways, applied in a wide range of areas.
